异径卡套直通 | Reducing Union

产品概要：

名称：卡套异径直通
压力等级：10MPa~40MPa
适用温度：≤450℃
制造材料：不锈钢304、316、316L、S32205、S32750
制造标准：GB3733.1-3765-83
螺纹形式：ZG、G、BSPP、NPT等
适用介质：油、水、气等非腐蚀性或有腐蚀性介质
应用领域：新能源、电子、电气、机械、液压、汽车领域。

应用领域

产品详细

Connects Fractional Tubes（英制管）

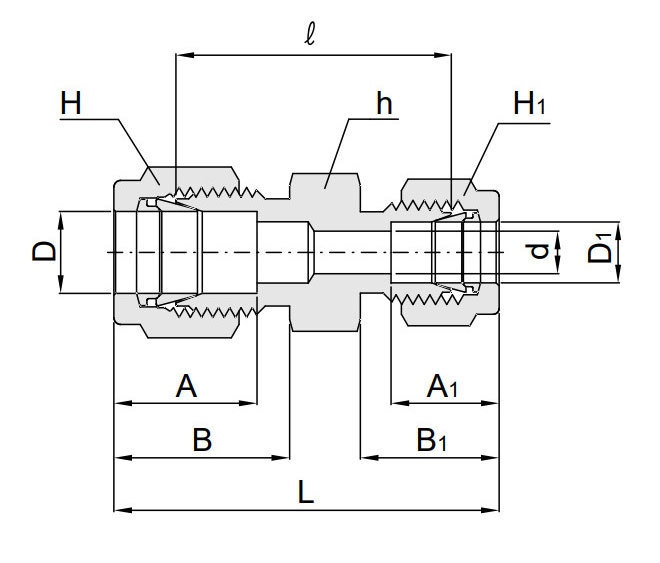

Part No.	Tube OD				d Min.	Width across flat (in.)			A	A₁	B	B₁	ℓ	L
	D		D₁			Width across flat (in.)
	in.	mm	in.	mm		h	H	H₁
CUR 2-1	1/8	3.17	1/16	1.58	1.3	7/16	7/16	5/16	12.7	8.6	15.2	10.9	20.6	30.9
CUR 3-1	3/16	4.76	1/16	1.58	1.3	7/16	1/2	5/16	13.7	8.6	16	10.9	21.8	32.3
CUR 3-2	3/16	4.76	1/8	3.17	2.3	7/16	1/2	7/16	13.7	12.7	16	15.2	23.4	36.6
CUR 4-1	1/4	6.35	1/16	1.58	1.3	1/2	9/16	5/16	15.2	8.6	17.8	10.9	23.1	34.3
CUR 4-2	1/4	6.35	1/8	3.17	2.3	1/2	9/16	7/16	15.2	12.7	17.8	15.2	24.6	38.6
CUR 4-3	1/4	6.35	3/16	4.76	3	1/2	9/16	1/2	15.2	13.7	17.8	16	25.4	39.4
CUR 5-2	5/16	7.93	1/8	3.17	2.3	9/16	5/8	7/16	16.3	12.7	18.5	15.2	25.9	39.9
CUR 5-4	5/16	7.93	1/4	6.35	4.8	9/16	5/8	9/16	16.3	15.2	18.5	17.8	24.7	42.2
CUR 6-1	3/8	9.52	1/16	1.58	1.3	5/8	11/16	5/16	16.8	8.6	19.3	10.9	25.4	36.6
CUR 6-2	3/8	9.52	1/8	3.17	2.3	5/8	11/16	7/16	16.8	12.7	19.3	15.2	26.9	40.9
CUR 6-4	3/8	9.52	1/4	6.35	4.8	5/8	11/16	9/16	16.8	15.2	19.3	17.8	28.4	43.2
CUR 6-5	3/8	9.52	5/16	7.93	6.3	5/8	11/16	5/8	16.8	16.3	19.3	18.5	29.5	44.2
CUR 8-2	1/2	12.7	1/8	3.17	2.3	13/16	7/8	7/16	22.9	12.7	21.8	15.2	28.4	45.2
CUR 8-4	1/2	12.7	1/4	6.35	4.8	13/16	7/8	9/16	22.9	15.2	21.8	17.8	29.5	47
CUR 8-6	1/2	12.7	3/8	9.52	7	13/16	7/8	11/16	22.9	16.8	21.8	19.3	31	48.5
CUR 10-6	5/8	15.87	3/8	9.52	7	15/16	1	11/16	24.4	16.8	21.8	19.3	31.8	49.3
CUR 10-8	5/8	15.87	1/2	12.7	10.4	15/16	1	7/8	24.4	22.9	21.8	21.8	31.8	52.1
CUR 12-4	3/4	19.05	1/4	6.35	4.8	1-1/16	1-1/8	9/16	24.4	15.2	21.8	17.8	31.8	49.3
CUR 12-6	3/4	19.05	3/8	9.52	7	1-1/16	1-1/8	11/16	24.4	16.8	21.8	19.3	33.3	50.8
CUR 12-8	3/4	19.05	1/2	12.7	10.4	1-1/16	1-1/8	7/8	24.4	22.9	21.8	21.8	33.3	53.6
CUR 12-10	3/4	19.05	5/8	15.87	12.7	1-1/16	1-1/8	1	24.4	24.4	21.8	21.8	33.3	53.6
CUR 16-8	1	25.4	1/2	12.7	10.4	1-3/8	1-1/2	7/8	31.2	22.9	26.4	21.8	40.9	63.2
CUR 16-12	1	25.4	3/4	19.05	15.7	1-3/8	1-1/2	1-1/8	31.2	24.4	26.4	21.8	40.4	62.7

Connects Metric Tubes（公制管）

Part No.	Tube OD		d Min.	Width across flat			A	A1	B	B1	ℓ	L
Part No.	D	D1	d Min.	h	H	H1	A	A1	B	B1	ℓ	L
CUR 3M - 2M	3	2	1.7	7/16 in.	12	12	12.9	12.9	15.3	15.3	22.1	35.3
CUR 6M - 2M	6	2	1.7	7/16 in.	14	12	15.3	12.9	17.7	15.3	24.6	38.6
CUR 6M - 3M	6	3	2.3	1/2 in.	14	12	15.3	12.9	17.7	15.3	24.6	38.6
CUR 6M - 4M	6	4	2.4	1/2 in.	14	12	15.3	13.7	17.7	16.1	25.4	39.4
CUR 8M - 6M	8	6	4.8	14	16	14	16.2	15.3	18.6	17.7	27.4	42.3
CUR 10M - 6M	10	6	4.8	17	19	14	17.2	15.3	19.5	17.7	29.5	44.5
CUR 10M - 8M	10	8	6.3	17	19	16	17.2	16.2	19.5	18.6	30	45.1
CUR 12M - 6M	12	6	4.8	13/16 in.	22	14	22.8	15.3	22	17.7	29.5	47
CUR 12M - 8M	12	8	6.3	13/16 in.	22	16	22.8	16.2	22	18.6	30.2	47.8
CUR 12M -10M	12	10	8	13/16 in.	22	19	22.8	17.2	22	19.5	31	48.7
CUR 16M -10M	16	10	8	24	25	19	24.4	17.2	22	19.5	31.8	49.5
CUR 16M -12M	16	12	9.5	24	25	22	24.4	22.8	22	22	31.8	52
CUR 18M -12M	18	12	9.5	27	30	22	24.4	22.8	22	22	33.3	53.5
CUR 25M -18M	25	18	15	35	38	30	31.3	24.4	26.5	22	38.6	61
CUR 25M -20M	25	20	16	35	38	32	31.3	26	26.5	22	39.9	62.3
