卡套直通穿板 | Bulkhead Union

产品概要：

名称：卡套直通穿板
压力等级：1.6MPa~40MPa
适用温度：≤450℃
制造材料：不锈钢304、316、316L、S32205、S32750
制造标准：GB3733.1-3765-83
螺纹形式：ZG、G、BSPP、NPT等
适用介质：油、水、气等非腐蚀性或有腐蚀性介质
应用领域：新能源、电子、电气、机械、液压、汽车领域。

应用领域

产品详细

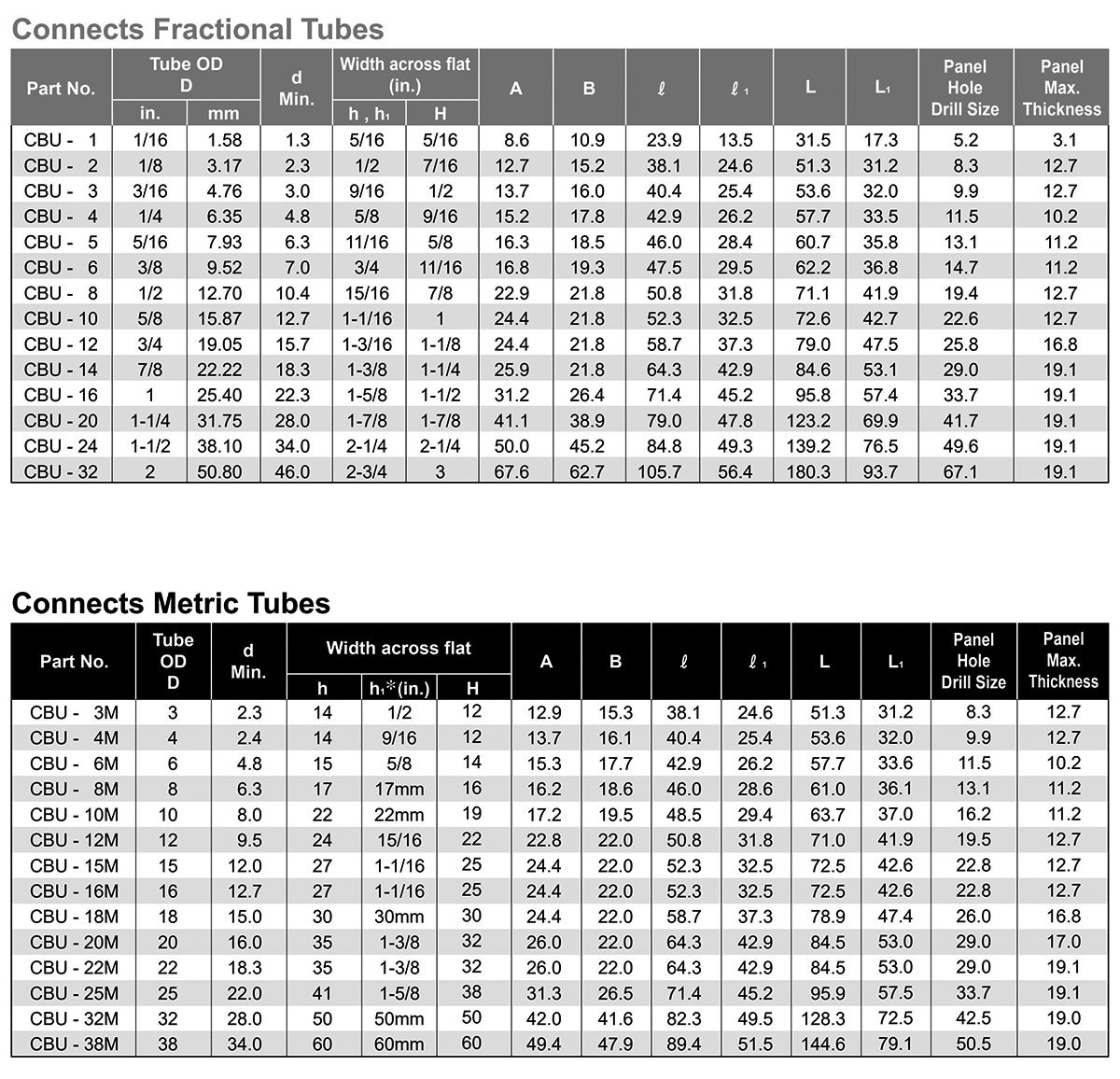

Connects Fractional Tubes（英制管）

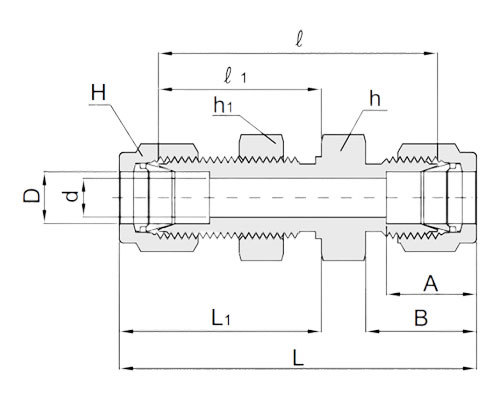

Part No.	Tube OD D		d Min.	Width across flat (in.)		A	B	ℓ	ℓ₁	L	L₁	Panel Hole Drill Size	Panel Max. Thickness
Part No.	in.	mm	d Min.	h , h1	H	A	B	ℓ	ℓ₁	L	L₁	Panel Hole Drill Size	Panel Max. Thickness
CBU - 1	1/16	1.58	1.3	5/16	5/16	8.6	10.9	23.9	13.5	31.5	17.3	5.2	3.1
CBU - 2	1/8	3.17	2.3	1/2	7/16	12.7	15.2	38.1	24.6	51.3	31.2	8.3	12.7
CBU - 3	3/16	4.76	3	9/16	1/2	13.7	16	40.4	25.4	53.6	32	9.9	12.7
CBU - 4	1/4	6.35	4.8	5/8	9/16	15.2	17.8	42.9	26.2	57.7	33.5	11.5	10.2
CBU - 5	5/16	7.93	6.3	11/16	5/8	16.3	18.5	46	28.4	60.7	35.8	13.1	11.2
CBU - 6	3/8	9.52	7	3/4	11/16	16.8	19.3	47.5	29.5	62.2	36.8	14.7	11.2
CBU - 8	1/2	12.7	10.4	15/16	7/8	22.9	21.8	50.8	31.8	71.1	41.9	19.4	12.7
CBU - 10	5/8	15.87	12.7	1-1/16	1	24.4	21.8	52.3	32.5	72.6	42.7	22.6	12.7
CBU - 12	3/4	19.05	15.7	1-3/16	1-1/8	24.4	21.8	58.7	37.3	79	47.5	25.8	16.8
CBU - 14	7/8	22.22	18.3	1-3/8	1-1/4	25.9	21.8	64.3	42.9	84.6	53.1	29	19.1
CBU - 16	1	25.4	22.3	1-5/8	1-1/2	31.2	26.4	71.4	45.2	95.8	57.4	33.7	19.1
CBU - 20	1-1/4	31.75	28	1-7/8	1-7/8	41.1	38.9	79	47.8	123.2	69.9	41.7	19.1
CBU - 24	1-1/2	38.1	34	2-1/4	2-1/4	50	45.2	84.8	49.3	139.2	76.5	49.6	19.1
CBU - 32	2	50.8	46	2-3/4	3	67.6	62.7	105.7	56.4	180.3	93.7	67.1	19.1

Connects Metric Tubes（公制管）

Part No.	Tube OD D	d Min.	Width across flat			A	B	ℓ	ℓ₁	L	L₁	Panel Hole Drill Size	Panel Max. Thickness
Part No.	Tube OD D	d Min.	h	h₁*(in.)	H	A	B	ℓ	ℓ₁	L	L₁	Panel Hole Drill Size	Panel Max. Thickness
CBU - 3M	3	2.3	14	1/2	12	12.9	15.3	38.1	24.6	51.3	31.2	8.3	12.7
CBU - 4M	4	2.4	14	9/16	12	13.7	16.1	40.4	25.4	53.6	32	9.9	12.7
CBU - 6M	6	4.8	15	5/8	14	15.3	17.7	42.9	26.2	57.7	33.6	11.5	10.2
CBU - 8M	8	6.3	17	17mm	16	16.2	18.6	46	28.6	61	36.1	13.1	11.2
CBU - 10M	10	8	22	22mm	19	17.2	19.5	48.5	29.4	63.7	37	16.2	11.2
CBU - 12M	12	9.5	24	15/16	22	22.8	22	50.8	31.8	71	41.9	19.5	12.7
CBU - 15M	15	12	27	1-1/16	25	24.4	22	52.3	32.5	72.5	42.6	22.8	12.7
CBU - 16M	16	12.7	27	1-1/16	25	24.4	22	52.3	32.5	72.5	42.6	22.8	12.7
CBU - 18M	18	15	30	30mm	30	24.4	22	58.7	37.3	78.9	47.4	26	16.8
CBU - 20M	20	16	35	1-3/8	32	26	22	64.3	42.9	84.5	53	29	17
CBU - 22M	22	18.3	35	1-3/8	32	26	22	64.3	42.9	84.5	53	29	19.1
CBU - 25M	25	22	41	1-5/8	38	31.3	26.5	71.4	45.2	95.9	57.5	33.7	19.1
CBU - 32M	32	28	50	50mm	50	42	41.6	82.3	49.5	128.3	72.5	42.5	19
CBU - 38M	38	34	60	60mm	60	49.4	47.9	89.4	51.5	144.6	79.1	50.5	19

All dimensions are in millimeters unless otherwise specified. Dimensions are for reference only, subject to change.
所有尺寸均以毫米为单位，除非另有说明。尺寸仅供参考，如有更改，恕不另行通知。
