螺纹管座 | Thredolet


Thredolet Specification:

Size/尺寸 1/2" NPS TO 4" NPS
Class/压力等级 3000LB, 6000LB (SCH80/XS, SCH160)
Type/连接形式 Threads: American National Standard Taper Pipe Threads
NPT(ANSI/ASME B1.20.1-1983)
Also available in other thread forms: Rc, Rp, BSP, BSPT,BSPP and in any combination.
Surface Treatment/表面处理 Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Soldering
Materal/材质 Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel
Manufacturing process/制造工艺 Cutting, Heat treatment, Forging, Machining
锯切、热处理、模锻、机加工
Manufacturing Standards/制造标准 MSS SP-97


Thredolet Material Grades:

Stainless Steel/不锈钢 ASTM A 182F304, F304L, F304H, F316, F316L, F316Ti, F310, F310S, F321, F321H, F317, F347, F347H, F904L
Duplex & Super Duplex Steel/双相钢 ASTM A 182 – F51, F53, F55, S31803, S32205, S32550, S31254, SMO254, S32750, S32760, S32950.
Carbon Steel/碳钢 ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2
Alloy Steel/合金钢 ASTM / ASME A 182, ASTM / ASME F5, F9, F11,F22, F 91
Copper Alloy Steel/铜合金 Copper Alloy Steel Forged Threaded 90 Deg Elbow : ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)
Nickel Alloy/镍合金 ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)


Thredolet Dimesions:

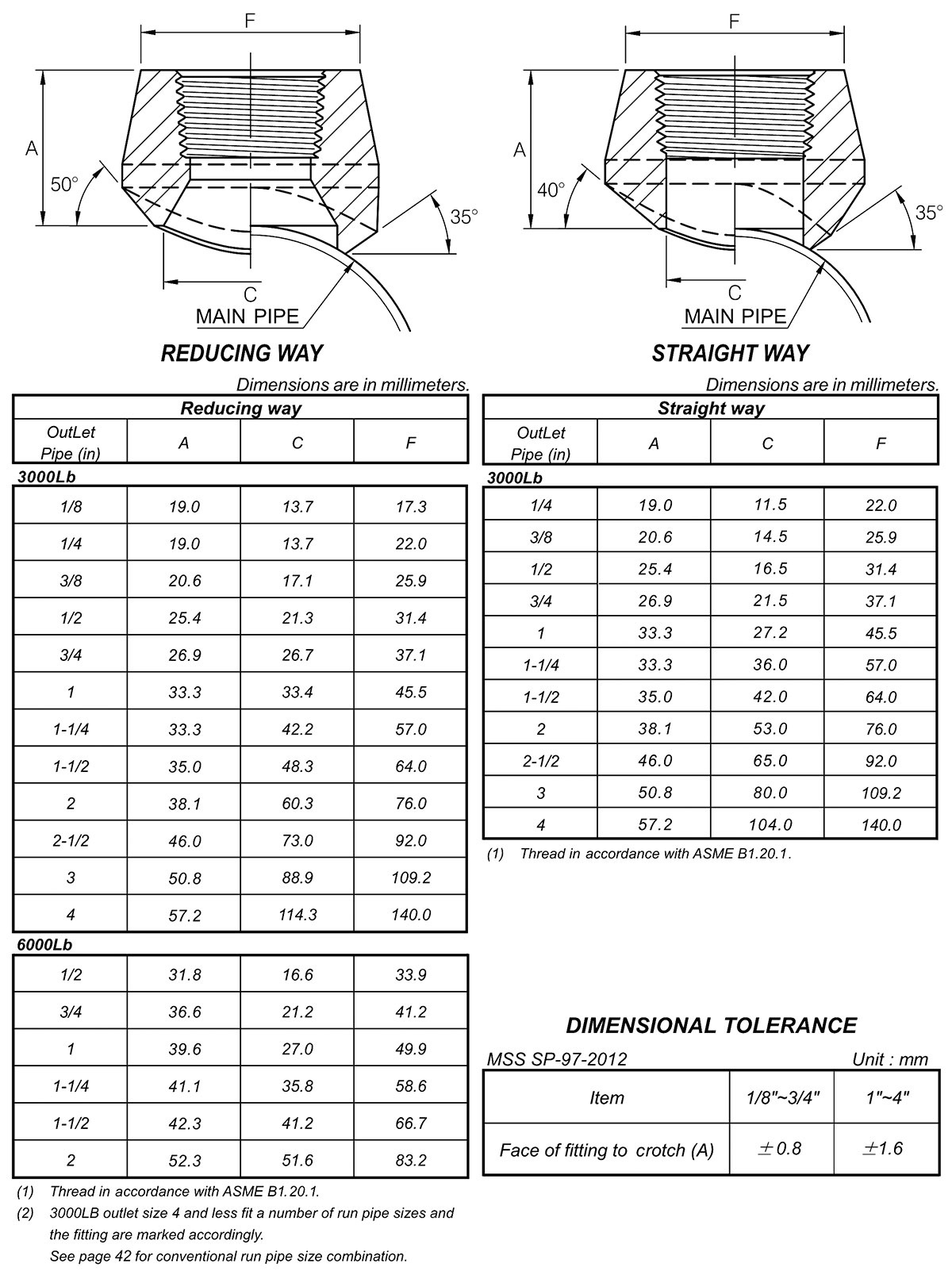

Thredolet Dimesions Table 1:
Out-Let
Pipe
NPS
(in)
Reducing Way
A C F
3000lb
(Sch80)
6000lb
(Sch160)
3000lb
(Sch80)
6000lb
(Sch160)
3000lb
(Sch80)
6000lb
(Sch160)
1/8" 19.0 --- 13.7 --- 17.3 ---
1/4" 19.0 --- 13.7 --- 22.0 ---
3/8" 21.0 --- 17.1 --- 25.8 ---
1/2" 25.0 32.0 21.3 16.6 31.3 33.9
3/4" 27.0 37.0 26.7 21.2 37.1 41.2
1" 33.0 40.0 33.4 27.0 45.5 49.9
1-1/4" 33.0 41.0 42.2 35.8 57.0 58.6
1-1/2" 35.0 43.0 48.3 41.2 64.0 66.7
2" 38.0 52.0 60.3 51.6 76.0 83.2
2-1/2" 46.0 --- 73.0 --- 92.0 ---
3" 51.0 --- 88.9 --- 109.2 ---
4" 57.0 --- 114.3 --- 140.0 ---
Thredolet Dimesions Table 2:
Out-Let Pipe
NPS
(in)
Straight Way
A C F
3000lb
1/8" --- --- ---
1/4" 19.0 11.5 22.0
3/8" 21.0 14.5 25.9
1/2" 25.0 16.5 31.4
3/4" 27.0 21.5 37.1
1" 33.0 27.2 45.5
1-1/4" 33.0 36.0 57.0
1-1/2" 35.0 42.0 64.0
2" 38.0 53.0 76.0
2-1/2" 46.0 65.0 92.0
3" 51.0 80.0 109.2
4" 57.0 104.0 140.0
(1) Dimensions in Millimeters.
(2) Thread in accordance with ASME B1.20.1
(3) 3000LBS outlet size 4 and less fit a number of run pipe sizes and the fitting are  marked accordingly.


Dimensional Tolerance of  MSS-SP97
Item 1/8"to3/4" 1"to4"
Face of fitting to crotch(A) ±0.76 ±1.52
