承插焊管座 | Sockolet


Sockolet Specification:

Size/尺寸 1/2" NPS TO 4" NPS
Class/压力等级 3000LB, 6000LB, 9000LB (STD, SCH80/XS, SCH160, XXH)
Type/连接形式 Socket Weld/承插焊
Surface Treatment/表面处理 Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Soldering
Materal/材质 Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel
Manufacturing process/制造工艺 Cutting, Heat treatment, Forging, Machining
锯切、热处理、模锻、机加工
Manufacturing Standards/制造标准 MSS SP-97


Sockolet Material Grades:

Stainless Steel/不锈钢 ASTM A 182F304, F304L, F304H, F316, F316L, F316Ti, F310, F310S, F321, F321H, F317, F347, F347H, F904L
Duplex & Super Duplex Steel/双相钢 ASTM A 182 – F51, F53, F55, S31803, S32205, S32550, S31254, SMO254, S32750, S32760, S32950.
Carbon Steel/碳钢 ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2
Alloy Steel/合金钢 ASTM / ASME A 182, ASTM / ASME F5, F9, F11,F22, F 91
Copper Alloy Steel/铜合金 Copper Alloy Steel Forged Threaded 90 Deg Elbow : ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)
Nickel Alloy/镍合金 ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)


Sockolet Dimesions:

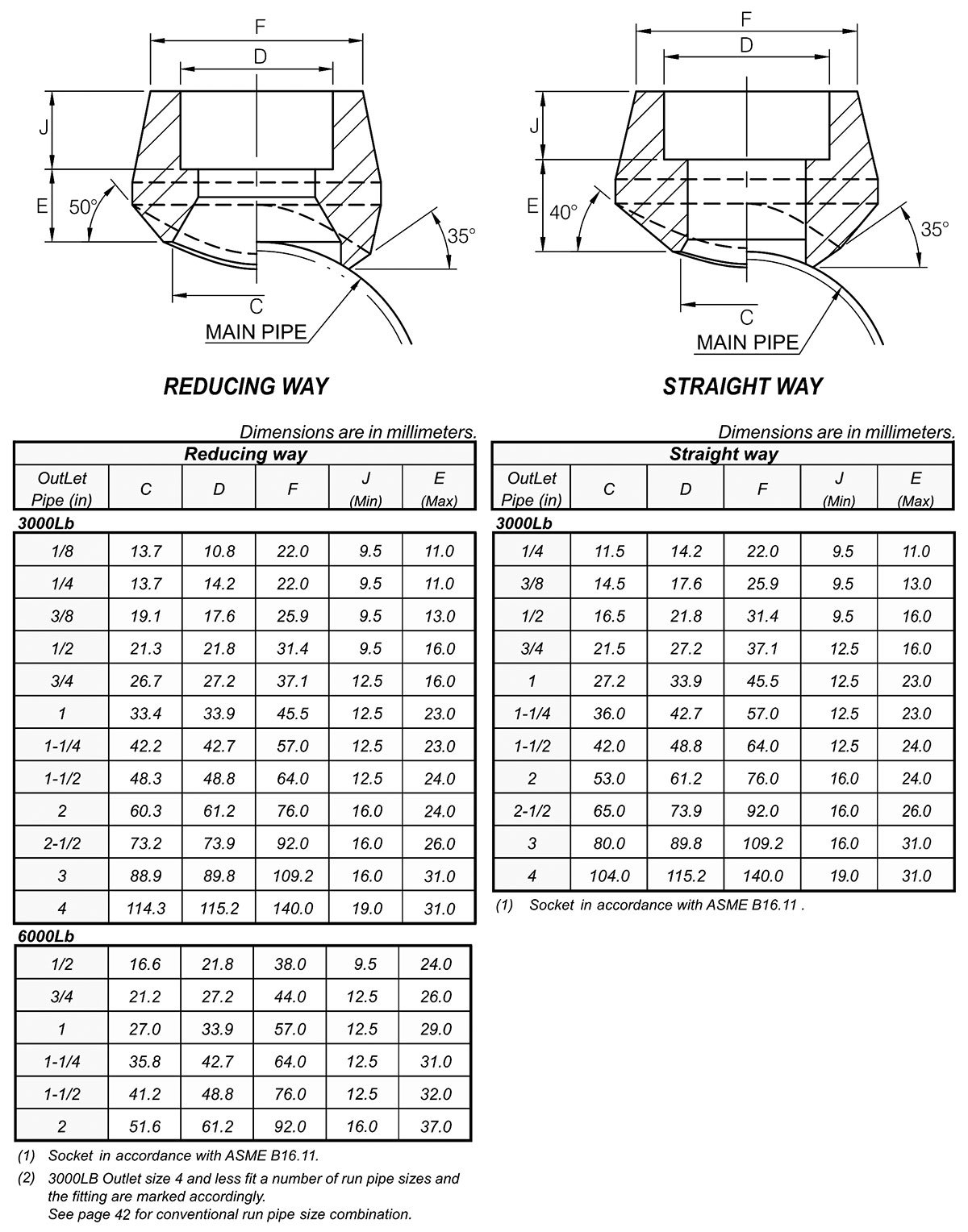

Sockolet Dimesions Table 1:
Out-Let
Pipe
NPS
Reducing Way
C D F J
(Min.)
E
(Min.)
3000 6000 3000 6000 3000 6000 3000 6000 3000 6000
1/8" 13.7 --- 10.8 --- 22.0 --- 9.7 --- 10.4 ---
1/4" 13.7 --- 14.2 --- 22.0 --- 9.7 --- 10.4 ---
3/8" 19.1 --- 17.6 --- 25.9 --- 9.7 --- 12.7 ---
1/2" 21.3 16.6 21.8 21.8 31.4 38.0 9.7 9.7 16.0 23.9
3/4" 26.7 21.2 27.2 27.2 37.1 44.0 12.7 12.7 16.0 25.4
1" 33.4 27.0 33.9 33.9 45.5 57.0 12.7 12.7 22.4 28.7
1-1/4" 42.2 35.8 42.7 42.7 57.0 54.0 12.7 12.7 22.4 30.2
1-1/2" 48.3 41.2 48.8 48.8 64.0 76.0 12.7 12.7 23.9 31.8
2" 60.3 51.6 61.2 61.2 76.0 92.0 15.8 15.8 23.9 36.6
2-1/2" 73.2 --- 73.9 --- 92.0 --- 15.8 --- 25.4 ---
3" 88.9 --- 89.8 --- 109.2 --- 15.8 --- 30.2 ---
4" 114.3 --- 115.2 --- 140.0 --- 19.1 --- 30.2 ---
Sockolet Dimesions Table 2:
Out-Let
Pipe
NPS
Staight Way
C D F J
(Min.)
E
(Min.)
3000LB
1/8" --- --- --- --- ---
1/4" 11.5 14.2 22.0 9.7 10.4
3/8" 14.5 17.6 25.9 9.7 12.7
1/2" 16.5 21.8 31.4 9.7 16.0
3/4" 21.5 27.2 37.1 12.7 16.0
1" 27.2 33.9 45.5 12.7 22.4
1-1/4" 36.0 42.7 57.0 12.7 22.4
1-1/2" 42.0 48.8 64.0 12.7 23.9
2" 53.0 61.2 76.0 15.8 23.9
2-1/2" 65.0 73.9 92.0 15.8 25.4
3" 80.0 89.8 109.2 15.8 30.2
4" 104.0 115.2 140.0 19.1 30.2
(1) Dimensions in Millimeters.
(2) Socket in accordance with ASME B16.11
(3) 3000LBS outlet size 4 and less fit a number of run pipe sizes and the fitting are marked accordingly.
