嵌入式管座 | Insertolet
产品概要:
尺寸范围:1/2" NPS TO 24" NPS
压力等级:SCH10、STD, SCH80/XS, SCH160、XXS、SCH5S/SCH10S
材质牌号:碳钢、不锈钢、合金钢、超级双相钢、镍基合金等
连接形式:Buttweld/对焊
制造工艺:进料→复检→下料→加热→锻压→热处理→检验→机加工→检验→打标→装箱→发运
制造标准:MSS SP-97、GB/T19326-2022、Q/FG11-16
压力等级:SCH10、STD, SCH80/XS, SCH160、XXS、SCH5S/SCH10S
材质牌号:碳钢、不锈钢、合金钢、超级双相钢、镍基合金等
连接形式:Buttweld/对焊
制造工艺:进料→复检→下料→加热→锻压→热处理→检验→机加工→检验→打标→装箱→发运
制造标准:MSS SP-97、GB/T19326-2022、Q/FG11-16
应用领域

产品详细
![]() |
![]() |

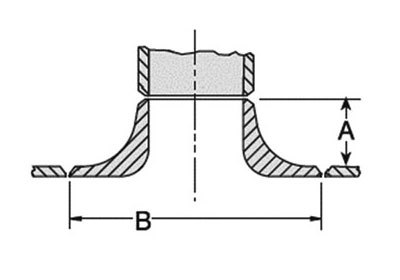

Run Size | Outlet Size | Dimensions | |
Inches | *A | B | |
6 to 36 | 1 1/4 | 1 1/4 | 4 |
6 to 36 | 1 1/2 | 1 3/4 | 5 1/2 |
6 to 36 | 2 | 1 1/2 | 5 1/2 |
6 to 36 | 3 | 1 21/32 | 7 |
6 to 36 | 4 | 2 1/32 | 8 3/4 |
10 to 36 | 6 | 2 11/16 | 13 |
12 to 36 | 8 | 3 | 15 |
16 to 36 | 10 | 3 1/8 | 18 1/2 |
16 to 36 | 12 | 3 5/16 | 20 1/2 |
20 to 36 | 14 | 3 5/8 | 24 |
24 to 36 | 16 | 3 3/4 | 28 |
24 to 36 | 18 | 4 5/8 | 31 |
24 to 36 | 20 | 5 1/8 | 33 |
30 to 36 | 24 | 5 5/8 | 38 |
A sweep outlet is a type of integrally reinforced branch connection used to facilitate radiography, one or many non-destructive tests (NDT) used to inspect welds.
This type of NDT uses Gamma or X-rays to penetrate material. The rays are then passed through film on the opposite side .the exposed film is examined as a negative and displays the internal features The thickness of the weld is shown through lighter or darker areas on the film.
